What does a cylinder head do in your engine’s performance? This crucial component sits atop the engine block, sealing the combustion chamber while housing vital parts like valves and spark plugs. Understanding its role can help you appreciate how your engine operates and why maintaining it is essential for peak efficiency. Keep reading to dive deeper into its functions and importance.

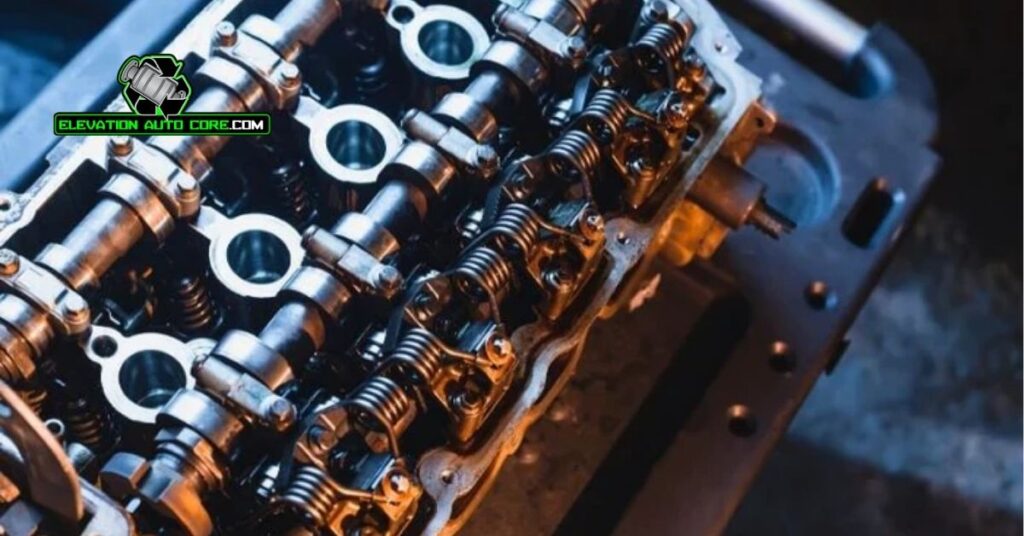

Understanding The Cylinder Head
The cylinder head plays a vital role in the operation of your vehicle’s engine. It connects and supports core processes within the combustion chamber.
Defining A Cylinder Head
A cylinder head is fixed atop the engine block, forming a seal for the combustion chamber. It houses critical components, including intake and exhaust valves, spark plugs, and fuel injectors. The design ensures precise airflow and accommodates the distribution of fuel for combustion.
Importance In Engine Functionality
Efficient combustion relies on the integrity of the cylinder head. It prevents leakage, maintains compression, and regulates temperature with coolant passages. By supporting the valves and spark plugs, it synchronizes combustion cycles necessary for engine performance. Flaws or damage can lead to reduced power, overheating, or fuel inefficiency.
Components Of A Cylinder Head
A cylinder head includes several critical components that enable engine performance and efficient combustion. These parts work together to control airflow, fuel delivery, and ignition timing.
Valves And Ports
Valves manage airflow and fuel exchange within the combustion chamber. Intake valves allow air and fuel mixtures to enter, while exhaust valves expel burnt gases. Ports are the pathways guiding this movement. Their design ensures smooth flow to optimize combustion and engine efficiency. Proper sealing by the valves also prevents compression loss.
Combustion Chambers
Combustion chambers are where fuel ignites to produce energy. Positioned in the cylinder head, they are designed to withstand high pressures and temperatures. The shape and size of these chambers influence efficiency and power output. Effective chambers help maintain uniform heat distribution, reducing the risk of engine knocking.
Spark Plugs And Injectors
Spark plugs ignite the air-fuel mixture required for combustion. Located within the cylinder head, they play a critical role in starting the engine and maintaining combustion cycles. Injectors spray fuel directly into the chambers or intake ports, depending on the engine type. Precise placement of these components ensures optimal fuel atomization and consistent performance.
How A Cylinder Head Works
A cylinder head supports multiple functions critical to an engine’s operation. It manages the interaction of air and fuel, directs the combustion process, and dissipates heat efficiently.
Air And Fuel Mixture Control
Careful regulation of the air-fuel mixture occurs inside the cylinder head. Intake valves allow air and fuel to flow into the combustion chamber during the intake stroke. Well-designed intake ports guide this mixture to ensure uniform distribution. Fuel injectors deliver precise amounts of fuel, either directly into the chamber or near the intake ports, for consistent atomization. Accurate control over this process directly impacts power generation and fuel efficiency.
Role In The Combustion Process
The cylinder head creates the sealed environment required for combustion. Combustion chambers, located within the head, house the air-fuel mixture as it ignites. Spark plugs fitted into the head generate the spark necessary for ignition, starting the energy conversion process. Properly shaped combustion chambers stabilize flame propagation and maximize energy production. Exhaust valves then expel the burnt gases, maintaining a seamless combustion cycle.
Heat Dissipation Responsibilities
Excess heat is managed by the cylinder head to prevent engine damage. Integrated coolant passages within the head transfer heat away from combustion chambers. These passages connect to the engine’s cooling system, maintaining optimal operating temperatures. Also, heat-resistant materials in the head’s construction endure high pressures while facilitating effective heat dissipation. This function protects critical components and enhances overall performance.
Types Of Cylinder Heads
You encounter different cylinder head types, each designed to optimize engine performance and efficiency. Key variations include differences in camshaft arrangements and combustion chamber designs.
Single Overhead Camshaft (SOHC)
A single overhead camshaft cylinder head includes one camshaft located above the combustion chambers. It controls both the intake and exhaust valves. By using fewer moving parts than other designs, SOHC heads reduce engine complexity and save weight. You find this type in engines where simplicity and cost-effectiveness are priorities, such as compact and mid-sized vehicles.
Dual Overhead Camshaft (DOHC)
A dual overhead camshaft cylinder head uses two camshafts positioned above the cylinders. One shaft operates the intake valves, while the other controls the exhaust valves, ensuring precise valve operation. DOHC heads improve airflow and allow for more valves per cylinder, improving engine efficiency and power output. This design is common in high-performance and modern multi-valve engines, offering superior combustion control and higher RPM capabilities.
Flathead Design
Flathead cylinder heads feature a simple design, with valves located within the engine block rather than the cylinder head. The flat surface above the combustion chamber gives this design its name. This type was widely used in older engines due to its straightforward construction and lower manufacturing costs. While outdated for modern applications, flathead designs remain relevant in certain vintage or low-speed engines where simplicity is key.
Common Issues With Cylinder Heads
A cylinder head is subject to immense stress from heat, pressure, and wear during engine operation. Problems with the cylinder head can significantly impact engine performance and reliability.
Warping And Cracking
Excessive heat often causes cylinder heads to warp, especially in aluminum designs. Warping leads to improper sealing of the combustion chamber, resulting in compression loss and poor performance. Cracks may appear when extreme temperature fluctuations or engine overheating weaken the structure. These cracks compromise the head’s ability to contain combustion pressure and coolant.
Gasket Failures
Cylinder head gasket failure is a frequent issue caused by overheating or improper installation. A blown gasket allows coolant or engine oil to leak into the combustion chamber, leading to white smoke exhaust or milky oil. Combustion gases escaping through a damaged gasket reduce engine efficiency and can overheat the engine further.
Carbon Build-Up Problems
Poor fuel combustion and inadequate maintenance promote the accumulation of carbon deposits within ports and chambers. These deposits obstruct airflow through intake and exhaust valves, reducing combustion efficiency. Over time, important build-up can lead to misfires, higher emissions, and reduced engine power.
Conclusion
Understanding the cylinder head’s role is essential for maintaining your engine’s performance, efficiency, and reliability. From managing airflow and fuel mixture to supporting combustion and dissipating heat, this component is vital to your vehicle’s operation. Proper care and timely maintenance can prevent common issues like warping, gasket failures, or carbon build-up, ensuring your engine runs smoothly. By appreciating its complexity and significance, you can make informed decisions to keep your engine in top condition for years to come.
