What makes pistons so essential to your engine’s performance? These small yet powerful components play a critical role in converting fuel energy into motion, making them indispensable in any combustion engine. From their various types to the intricate process of how they’re made, understanding pistons gives you a deeper appreciation for the engineering behind your vehicle. Keep reading to discover everything about these fascinating engine parts.
Overview Of Pistons
Pistons are critical components within an engine, directly influencing energy transfer and performance. Each piston operates by moving within a cylinder, compressing air-fuel mixtures, and withstanding intense pressure and heat.
Various types of pistons cater to exact engine designs, including flat-top, dome, and dished pistons. For example, flat-top pistons maximize combustion efficiency, while dome pistons increase compression in high-performance engines. Dished pistons, by contrast, are common in turbocharged configurations to handle added pressure.
Materials used in piston construction play a vital role in durability. Aluminum alloys are preferred for their lightweight nature and excellent heat conductivity. Cast iron pistons, though heavier, are suited for diesel engines requiring strength.
Precision manufacturing techniques ensure pistons deliver optimal performance. CNC machining, forging, and casting are primary processes used to achieve exact specifications and superior quality.

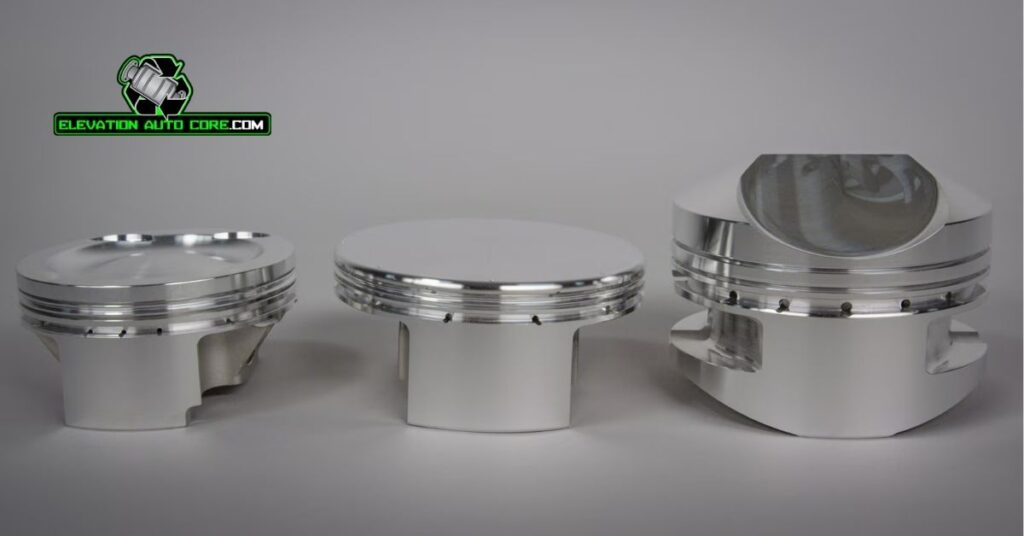

Types Of Pistons
Different types of pistons are designed to meet the unique demands of various engine configurations. Each type contributes to optimizing combustion efficiency, pressure handling, and overall performance.
Flat Top Pistons
Flat top pistons are commonly used in naturally aspirated engines. Their flat design provides a balanced volume for air-fuel mixture combustion, leading to efficient energy transfer. You’ll often find them in engines prioritizing reliability and fuel economy.
Dish Pistons
Dish pistons feature a concave or bowl-shaped top. This shape lowers compression ratios, making them suitable for turbocharged and supercharged engines. Their design reduces the risk of engine knocking under high-pressure environments.
Dome Pistons
Dome pistons have a raised or convex surface, increasing compression ratios. These are ideal for high-performance engines requiring advanced combustion. Their design is often used to boost torque in racing and muscle cars.
Slipper Pistons
Slipper pistons are designed with reduced mass by having cut-outs on the sides. This lightweight design decreases friction and increases engine efficiency. They’re typically found in compact or high-speed engines where agility is key.
Trunk Pistons
Trunk pistons, used in larger engines like diesel engines, have an extended skirt. This design handles heavy loads and transmits force effectively. Their robust structure supports engines prioritizing durability and power generation.
Materials Used In Pistons
Piston materials determine their durability, performance, and resistance to extreme temperatures and pressures. Aluminum alloys and cast iron are the most commonly used materials due to their exact properties.
Aluminum Alloys
Aluminum alloys dominate modern piston construction for their lightness and thermal conductivity. These alloys allow pistons to withstand high operating temperatures while remaining lightweight, which reduces engine inertia. High-performance engines, including those in sports cars, often use aluminum alloy pistons for efficient heat dissipation and quicker operation. Aluminum pistons undergo forging or precision casting to enhance durability and maintain structural integrity under stress.
Cast Iron
Cast iron is another widely used material, favored for its strength and wear resistance. Heavy-duty diesel engines benefit the most from cast iron pistons, as they can endure prolonged exposure to high combustion pressures. With a higher density than aluminum, cast iron adds durability to engines requiring extended lifespan and reliability. Manufacturing typically involves casting, which provides the pistons with their ability to endure mechanical strain.

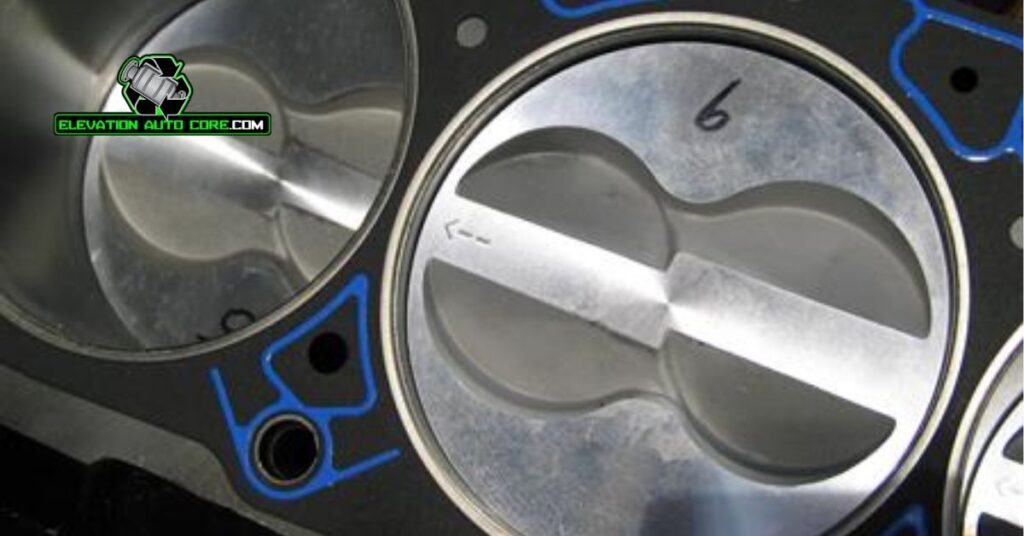

How Are Pistons Made?
Pistons undergo a precise, multi-step process to ensure durability and performance under extreme conditions. These steps include designing, casting, machining, and meticulous quality control measures.
Designing And Prototyping
The piston-making process begins with design and prototyping. Engineers use advanced CAD software to create a detailed blueprint, specifying dimensions, weight, and materials based on engine requirements. Prototypes are then developed using 3D printing or CNC machining to test fit and functionality. Design testing identifies weak points and ensures optimal combustion performance.
Casting Process
The next step involves forming the piston using either gravity or pressure casting methods. Molten aluminum alloys or cast iron are poured into precision molds to form a solid structure. For high-performance applications, forged pistons are produced by compressing heated aluminum into shape using hydraulic presses. The casting process enhances material density and strength, especially critical for engines with high compression ratios or boost.
Machining And Finishing
After casting, pistons are machined to achieve exact dimensions and surface finishes. Lathes and milling machines remove excess material and finalize the piston’s shape. Grooves for piston rings are cut with high accuracy to ensure a proper seal within the cylinder. A finishing step involves polishing or coating the piston skirt to reduce friction and improve efficiency in operation.
Quality Control
The final stage ensures pistons meet stringent performance standards. Each piston undergoes measurements and inspections using precision tools like coordinate measuring machines. Non-destructive testing like X-rays and ultrasonic scanning detects internal voids or material inconsistencies. Stress testing under simulated conditions verifies the piston can endure extreme temperatures and pressures. Robust quality control guarantees pistons deliver consistent performance without failures.
Advantages And Applications
Pistons enhance engine efficiency by optimizing combustion in various engine types. Their design directly influences power output, fuel consumption, and overall performance. Engines equipped with well-designed pistons achieve better thermal efficiency due to precise compression management.
Different piston types have exact advantages linked to their applications. Flat top pistons provide balanced combustion, making them ideal for naturally aspirated engines. Dome pistons enhance compression ratios, which benefits high-performance applications. Dish pistons, often used in turbocharged engines, handle higher pressure by reducing compression ratios to prevent detonation.
Manufacturers use lightweight aluminum pistons in performance vehicles to improve acceleration and reduce engine inertia. Diesel engines rely on cast iron pistons for their strength and ability to endure constant heavy loads. Compact designs, such as slipper pistons, are critical for reducing weight in high-speed engines, improving both speed and thermal efficiency.
Applications for pistons extend across automotive, industrial, and marine fields. In automotive engines, they’re vital for smooth motion and reliable power delivery. Industrial machinery benefits from robust piston designs to sustain prolonged operations under stress. Marine engines require durable pistons to cope with high-pressure environments and long operational periods.
Properly chosen piston designs improve performance across diverse engine systems, catering to the exact needs of each application. It’s important to align the piston type with the engine’s operational demands for maximum efficiency and durability.
Conclusion
Understanding the different types of pistons and their manufacturing process gives you a deeper appreciation for the engineering behind modern engines. Each piston type is meticulously designed to meet exact performance demands, ensuring efficiency, durability, and reliability across various applications.
Whether it’s the lightweight aluminum pistons for high-speed engines or the robust cast iron pistons for heavy-duty use, every detail plays a critical role in engine performance. By exploring these components, you not only enhance your knowledge but also gain insight into how engines achieve their impressive power and precision.
