How do you test for a cracked cylinder head without tearing apart your engine? Diagnosing this issue early can save you from costly repairs and engine damage. From telltale symptoms to straightforward testing methods, understanding the process is key to keeping your vehicle running smoothly. Keep reading to learn the essential steps and tools you’ll need.
Signs And Symptoms Of A Cracked Cylinder Head
Identifying a cracked cylinder head relies on recognizing common warning signs before conducting tests. Awareness of these symptoms helps you avoid extensive engine damage.
Engine Performance Issues
A cracked cylinder head often disrupts engine performance. Misfires can occur in one or more cylinders due to improper compression. You might notice reduced power output during acceleration. Increased fuel consumption serves as another warning sign of a problem affecting efficiency.
Visible Coolant Leaks Or Oil Contamination
Coolant may leak externally from cracks or fluid passages in the cylinder head. Check for puddles of coolant under the engine or unusual drips during inspection. Milky oil, visible under the oil cap or on the dipstick, indicates coolant mixing with oil, a clear symptom of a cracked head.
Overheating Problems
An overheating engine frequently points to cylinder head damage. Cracks can allow coolant loss or improper circulation inside the cooling system. If the temperature gauge rises unusually high or frequently, examine the head as part of troubleshooting.
Tools And Equipment Needed
Testing for a cracked cylinder head requires exact tools and safety gear to ensure accurate results and safe handling. Preparation helps avoid potential risks and ensures effective diagnosis.
Essential Tools For Testing
Gather tools designed for engine diagnostics. A combustion leak detector identifies exhaust gases in the coolant system, a common sign of a cracked cylinder head. Cooling system pressure testers help detect any leaks by simulating the cooling system’s operational pressure. An infrared thermometer or temperature gun measures inconsistent temperatures across the engine, which might indicate fissures. Compression testers evaluate cylinder pressure, while borescopes allow internal visual inspection without dismantling the engine.
Safety Gear Recommendations
Use protective gloves to shield your hands from hot surfaces and engine fluids. Wear safety goggles to protect your eyes during testing procedures involving pressurized systems or fluids. Coveralls or work clothing keep harmful substances away from your skin. Ensure nearby fire extinguishers are accessible when working with flammable liquids or fumes for added protection.
Methods To Test For A Cracked Cylinder Head
Identifying a cracked cylinder head requires accurate testing methods to confirm the damage without unnecessary disassembly. Using the right tools and step-by-step inspection methods ensures reliable results.
Visual Inspection
Look for external signs of damage or leaks when performing a visual inspection. Carefully examine the cylinder head for hairline cracks, especially around high-stress areas like valves or manifolds. Check for coolant or oil residue as they can indicate internal cracks. Confirm unusual discolorations caused by overheating near the cylinder head surface.
Compression Testing
Use a compression tester to evaluate the cylinder’s sealing capability. First, remove spark plugs and connect the compression gauge to each cylinder. Crank the engine, and record the pressure levels displayed. Compare the readings for all cylinders; a important drop in one or more cylinders could suggest a cracked head or compromised gasket.
Pressure Testing
Apply a cooling system pressure tester to assess leaks caused by cracks. Attach the tester to the radiator cap port, then pressurize the system to the recommended PSI. Observe pressure levels; a drop over time may confirm a crack in the cylinder head allowing coolant to escape. Monitor for coolant dripping from the engine block during the process.
Dye Penetrant Inspection
Perform a dye penetrant test to detect surface cracks. Clean the cylinder head thoroughly, then apply a liquid penetrant across suspected areas of damage. Wipe away excess dye after it has set, and use a developer to reveal cracks as visible lines. This method is ideal for pinpointing small cracks undetectable by the naked eye.

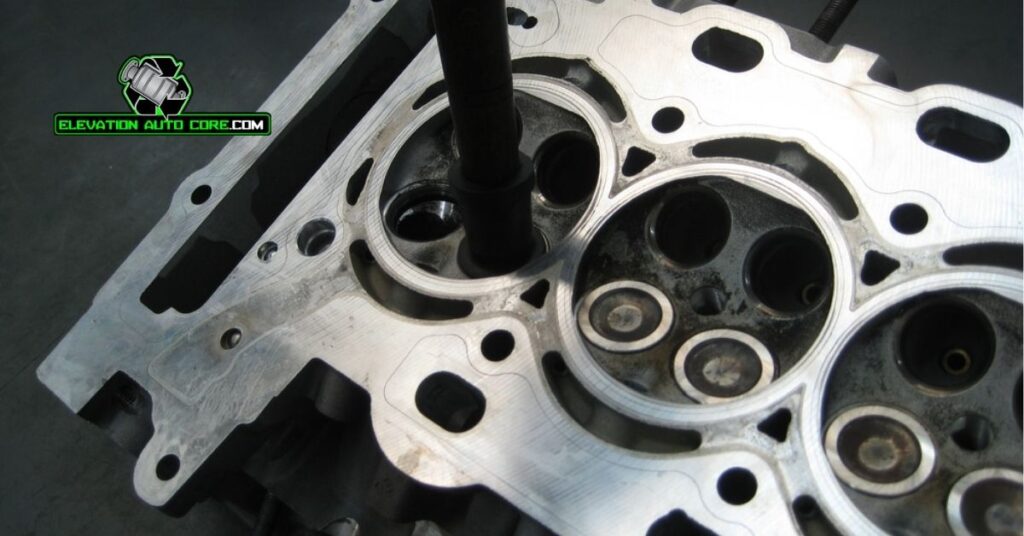

Steps To Perform Each Testing Method
Testing for a cracked cylinder head involves multiple methods that focus on identifying damage accurately. Follow these steps for each method to ensure reliable diagnosis.
Visual Inspection Step By Step
Start by examining the exterior of the cylinder head for visible defects. Look for signs of coolant leaks, oil seepage, or worn gaskets around the head. Pay close attention to any discoloration on engine parts, as it might indicate a fluid leak. Use a flashlight to inspect hard-to-see areas for cracks or damage.
Check for warping by laying a straight edge across the surface of the cylinder head. Confirm any unevenness, as it often signals a potential issue caused by overheating. Document abnormalities to cross-reference during further tests.
Conducting A Compression Test
Install a compression tester into the spark plug port of the suspected cylinder. Crank the engine for at least three compression strokes, recording the pressure reading displayed. Compare the results across all cylinders to identify discrepancies.
Low readings often point to poor sealing, which could result from a cracked cylinder head. Repeat the procedure to eliminate errors caused by tool misplacement or incorrect stroke measurements.
Pressure Testing Procedure
Prepare a cooling system pressure tester by connecting it to the radiator or coolant reservoir cap fitting. Pump the tester to the vehicle manufacturer’s recommended pressure value. Monitor the pressure gauge for a steady reading. A drop in pressure indicates a potential internal or external coolant leak.
Inspect the cylinder head and engine bay for any visible drips or moisture, as these often highlight the exact location of a crack. Drain the coolant before pressure testing to avoid inaccurate results.
Using Dye Penetrant Effectively
Clean the surface of the cylinder head thoroughly with a degreaser or cleaning solution. Apply the dye penetrant evenly across the area being tested, focusing on suspected cracks. Let the dye sit for the manufacturer-recommended duration to ensure proper absorption into surface flaws.
Remove excess dye and apply a developer spray to highlight imperfections. Look for outlined cracks on the cylinder head’s surface under good lighting. Repeat the process on multiple sections to ensure full coverage of the testing area.
Preventive Measures And Maintenance Tips
Routine maintenance and early detection play a vital role in mitigating the risk of cylinder head damage. Consistent care ensures your engine remains efficient and avoids costly future repairs.
Regular Cylinder Head Maintenance
Schedule periodic engine inspections to assess the cylinder head’s condition. Clean the cooling system regularly, using recommended coolant types to prevent deposits or corrosion. Ensure the engine oil is replaced at intervals specified in your vehicle’s manual, avoiding oil degradation that can lead to overheating or contamination. Check the torque on cylinder head bolts during major services to confirm proper tightness. Replace worn-out gaskets promptly to maintain a secure seal and prevent leaks. Keep the engine’s temperature within the optimal range by servicing the thermostat and radiator as needed.
Monitoring For Early Warning Signs
Watch for changes in engine performance as early indicators of potential cracks. Observe if the engine misfires, loses power, or emits white smoke from the exhaust, which could signify coolant entering the combustion chamber. Smell unusual odors such as burnt oil or gas and check fluid levels for unexpected drops in coolant or oil. Investigate any visible signs of coolant leaks, muddy oil, or residue in the radiator cap or overflow tank. Address unexplained overheating issues immediately, as they can exacerbate cylinder head problems. Conduct periodic visual inspections for external damage or evidence of leakage to identify issues before they worsen.
Conclusion
Testing for a cracked cylinder head is a critical step in protecting your engine from further damage and costly repairs. By understanding the signs, using the right tools, and following proper testing methods, you can diagnose issues accurately and take action before they escalate.
Prioritizing routine maintenance and staying alert to early warning signs will help you keep your engine running smoothly. With the knowledge and resources outlined, you’re better equipped to handle potential problems and maintain your vehicle’s performance for the long haul.
